Bendpak GrandPrix GP-9LC 9,000 Lb. Capacity 2 Post Lift

The GrandPrix GP-9LC is a rugged 9,000-lb. capacity two-post lift built for low-ceiling garages and tough shop conditions. Its floorplate design removes overhead obstructions, while symmetric and asymmetric arm configurations provide flexible vehicle access. A proven chain-over system with industrial-grade leaf chain and heavy-duty rollers delivers smooth, reliable lifting backed by serious durability. With automatic safety locks, oversized base plates, and rock-solid construction, the GP-9LC is built to work as hard as you do.

Features

  • 9,000-lb. lifting capacity.
  • Symmetric and asymmetric arm design for enhanced versatility.

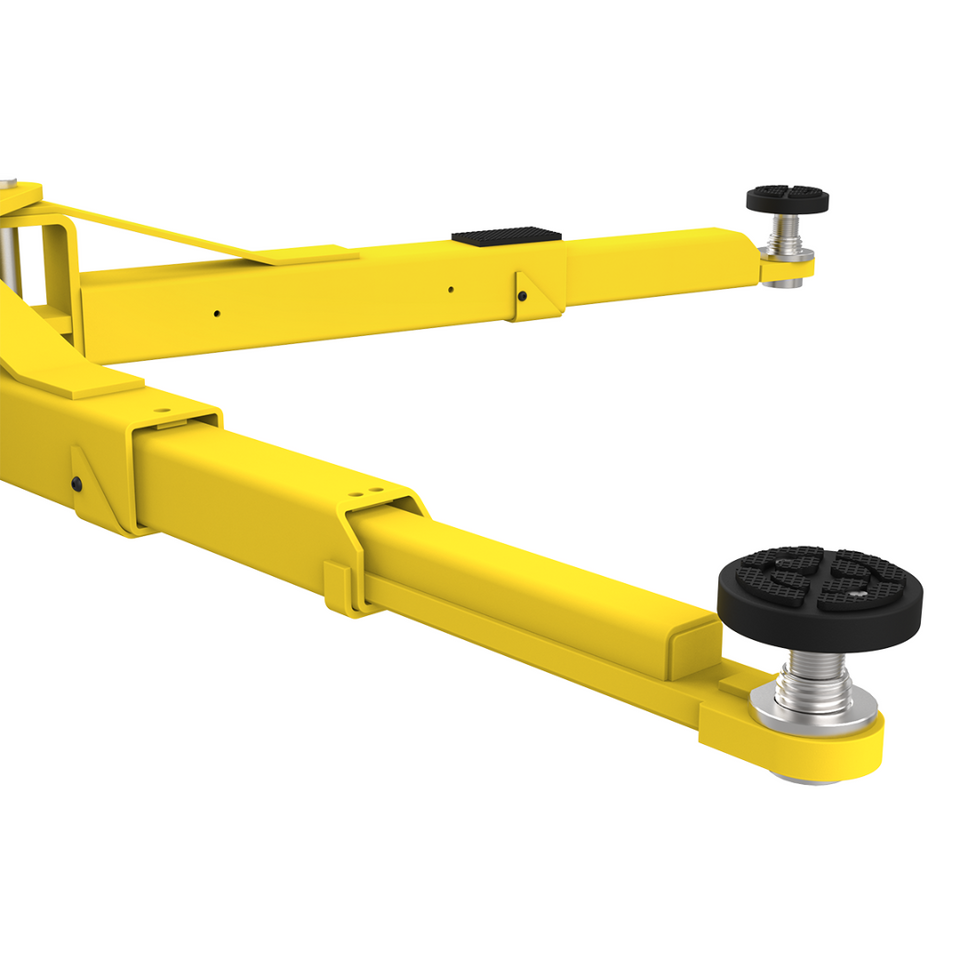

  • Triple-telescoping front arms & dual-stage extended rear arms.

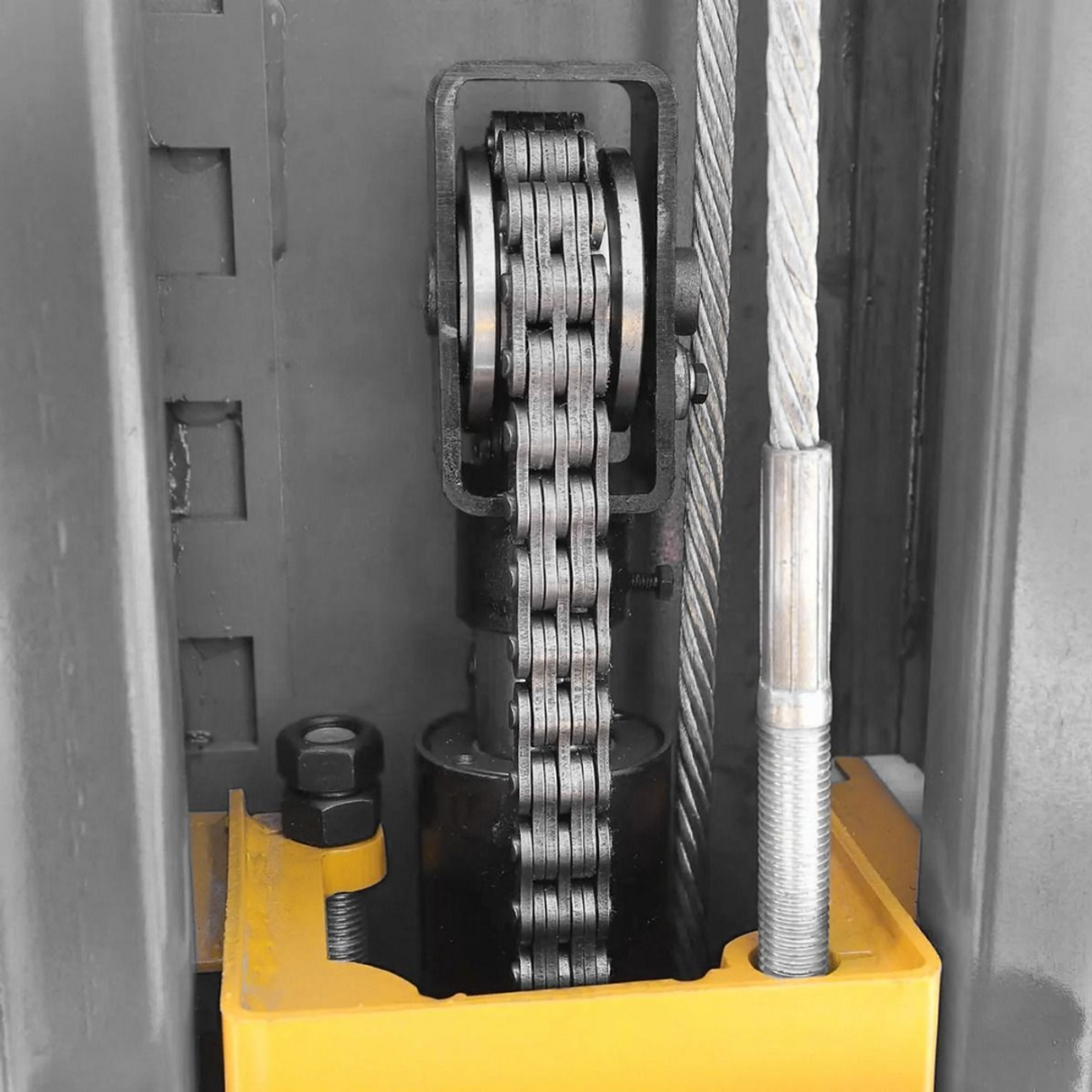

  • Heavy-duty, high-strength leaf chain engineered for reliable lifting power and durability.
  • Heavy-duty 6″ x 6″ tubular steel carriage for maximum strength.
  • Electric-hydraulic power system for effortless operation.

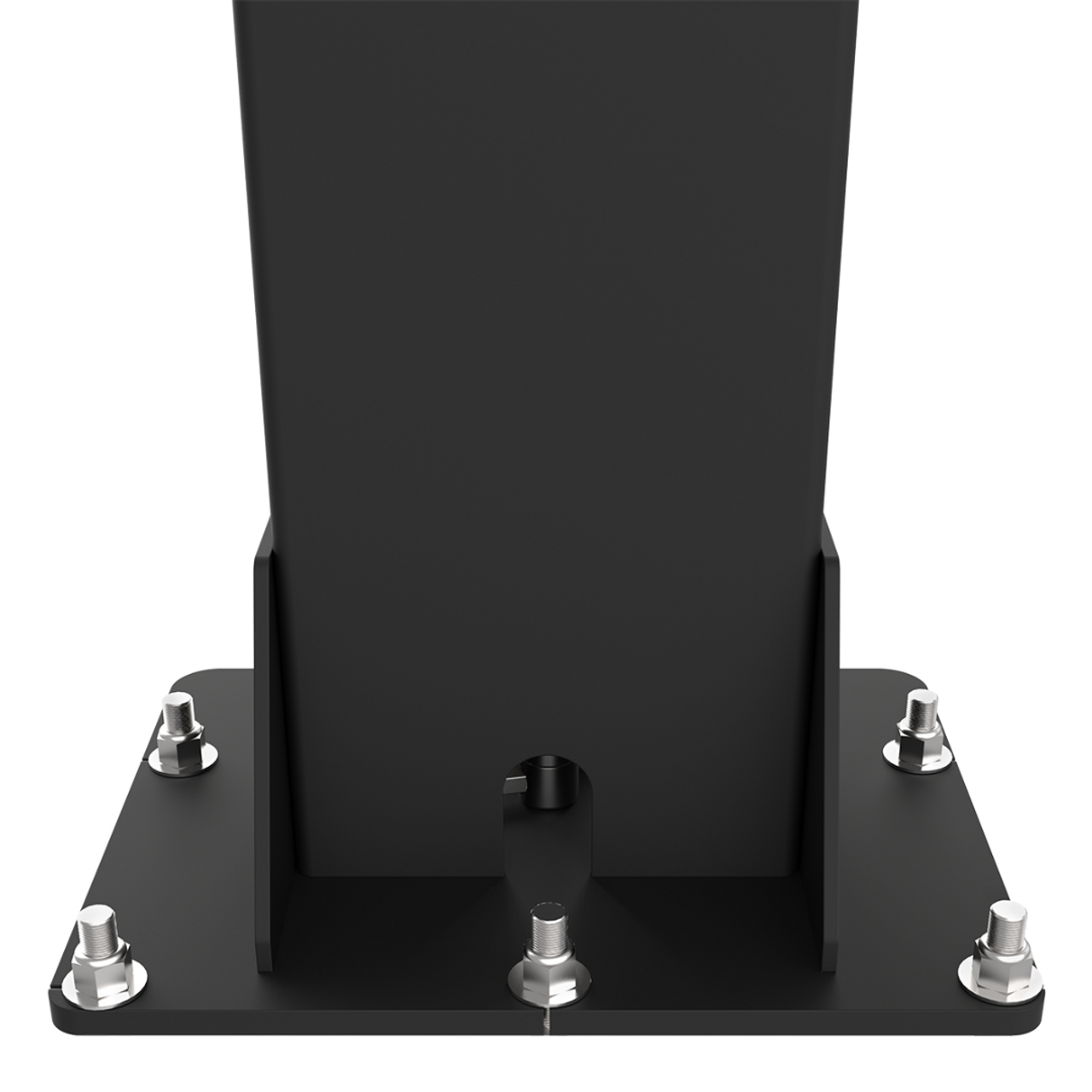

  • Oversized 20.5″ x 15.5″ base plate for increased stability.
  • Self-lubricating UHMW polyethylene guide blocks for long-lasting durability.

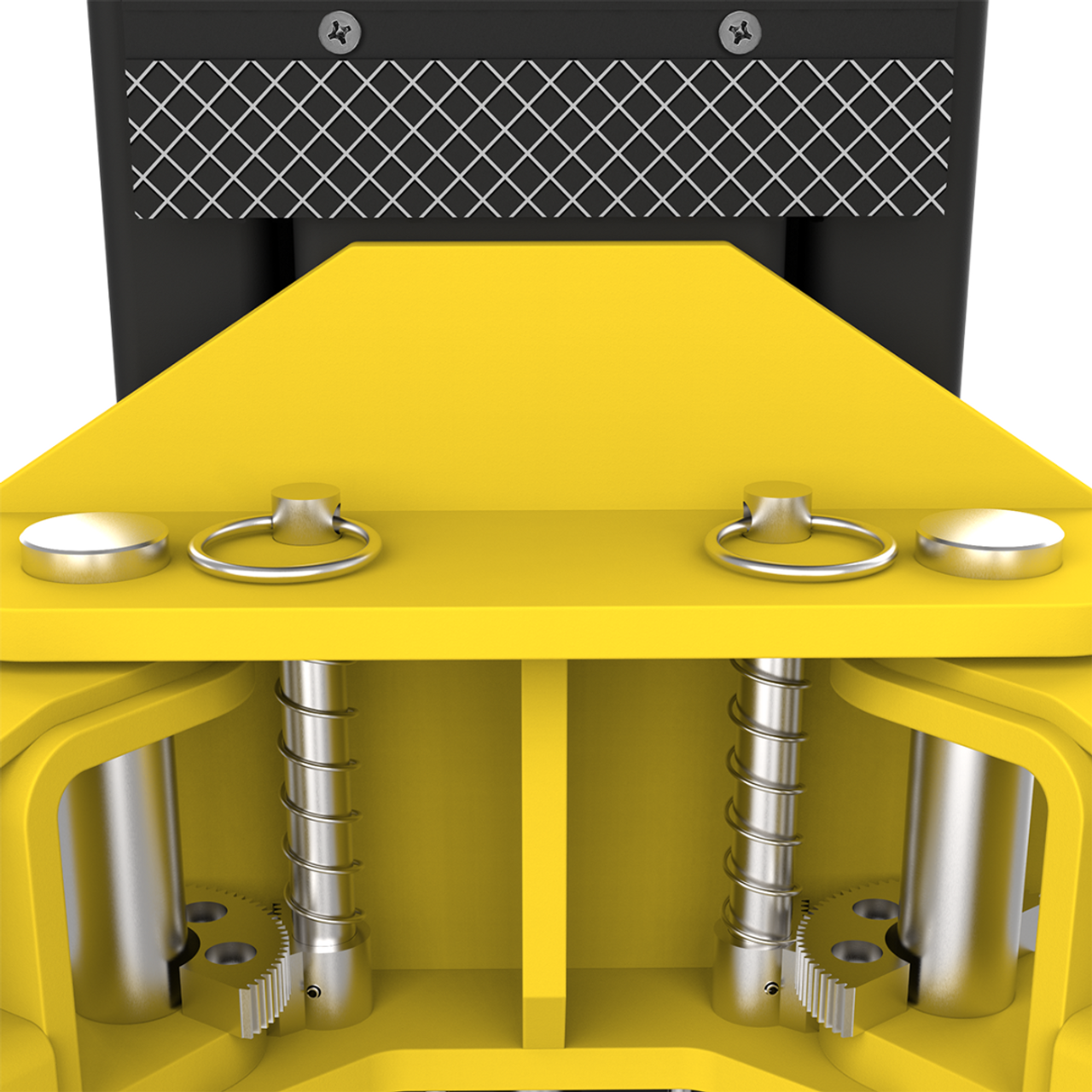

  • Safety locks in each column spaced every 3 inches.
  • Automatic arm restraints for enhanced safety.
  • Heavy-duty 1/2″ aircraft-quality equalizer cables.
  • Oversized cable sheaves to reduce cable fatigue.
  • Double-telescoping screw pads feature tear-resistant polyurethane for long-lasting durability.

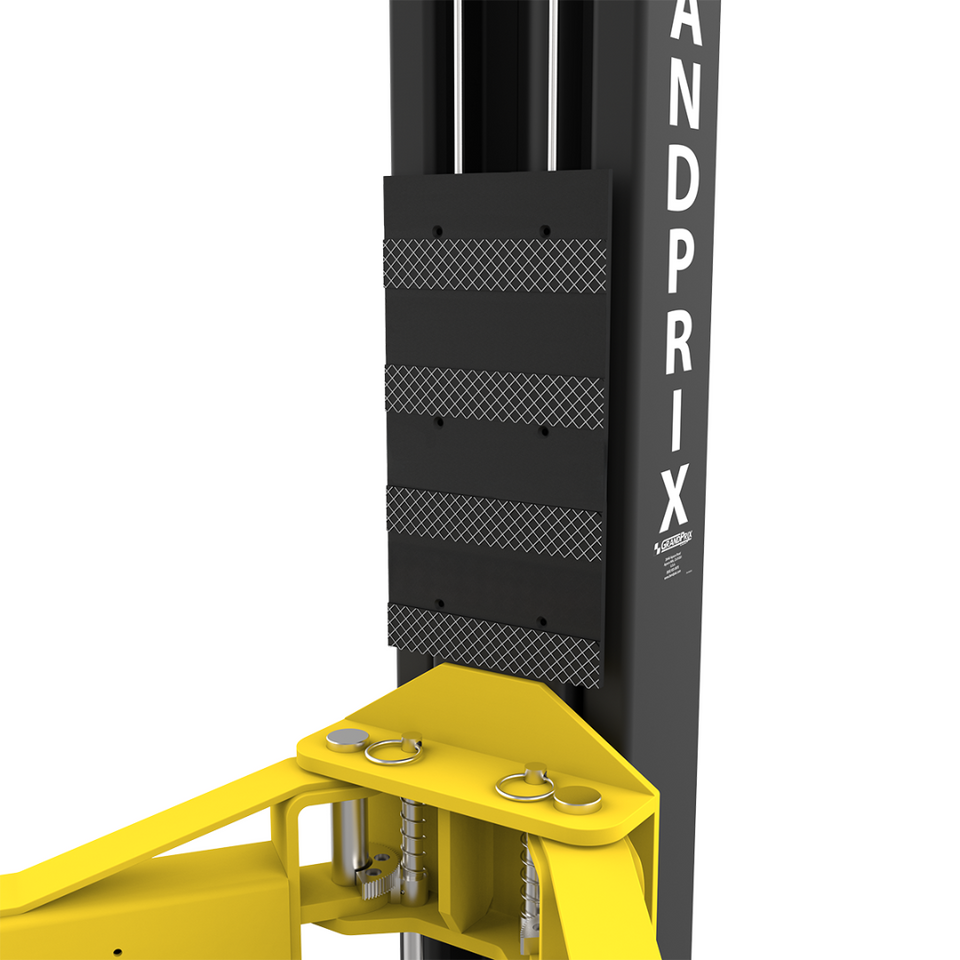

  • Full size rubber carriage guard reduces door dings.
  • 4-piece 63mm stackable adapter set included.
  • 10-piece concrete wedge anchors included.

Specifications

 Lifting Capacity  9,000 lbs. (4,082 kg)
 Max. Capacity / Front Axle  4,500 lbs. (2,045 kg)
 Max. Capacity / Rear Axle  4,500 lbs. (2,045 kg)
 A – Height Overall  109.5″ (2,781 mm)
 B – Width Overall (at Baseplate)  137.25″ (3,486 mm)
 C – Width Outside of Columns  127.5″ (3,238 mm)
 D – Floor To Drive-over Height  1.25″ (30 mm)
 E – Width Inside Columns  113.5″ (2,880 mm)
 F – Front Arm Reach (Min.)  22.5″ (571 mm)
 F – Front Arm Reach (Max.)  43.25″ (1,099 mm)
 G – Rear Arm Reach (Min.)  33.5″ (845 mm)
 G – Rear Arm Reach (Max.)  53.25″ (1,353 mm)
 H – Min. Pad Height  3.9″ (100 mm)
  I – Rise  70″ (1,778 mm)
 J – Max. Lift Height (Pad + 63mm Adapt.)  76.5″ – 78.5″ (1,943 – 1,994 mm)
 K – Drive-Thru Clearance  103″ (2,618 mm)
 Screw Pad Adjustment  2″ (51 mm)
 Motor  220 VAC / 60Hz / 1 Ph
 Time of Full Rise  65 seconds
 Max. Load Per Arm  2,250 lbs. (1,023 kg)
 Shipping Weight  1,385 lbs. (630 kg)
